How Does a Triaxial Apparatus Determine Shear Strength for Embankments?

 The long-term stability of embankments, highways, railways, dams, and retaining structures depends heavily on the shear strength of the underlying soil. If soil cannot resist shear stresses, it may experience excessive deformation, slope failure, or even catastrophic collapse. To accurately evaluate this critical property, engineers rely on a triaxial apparatus—one of the most advanced tools used in geotechnical laboratories.

As an essential component of professional Soil Test Equipment, a triaxial apparatus provides precise measurements of soil behavior under controlled stress conditions. The results help engineers design safe embankments, optimize construction methods, and ensure compliance with engineering standards. In this article, we'll explore how a triaxial apparatus works, its testing procedures, and why HBJF offers reliable Soil Test Equipment for geotechnical testing.

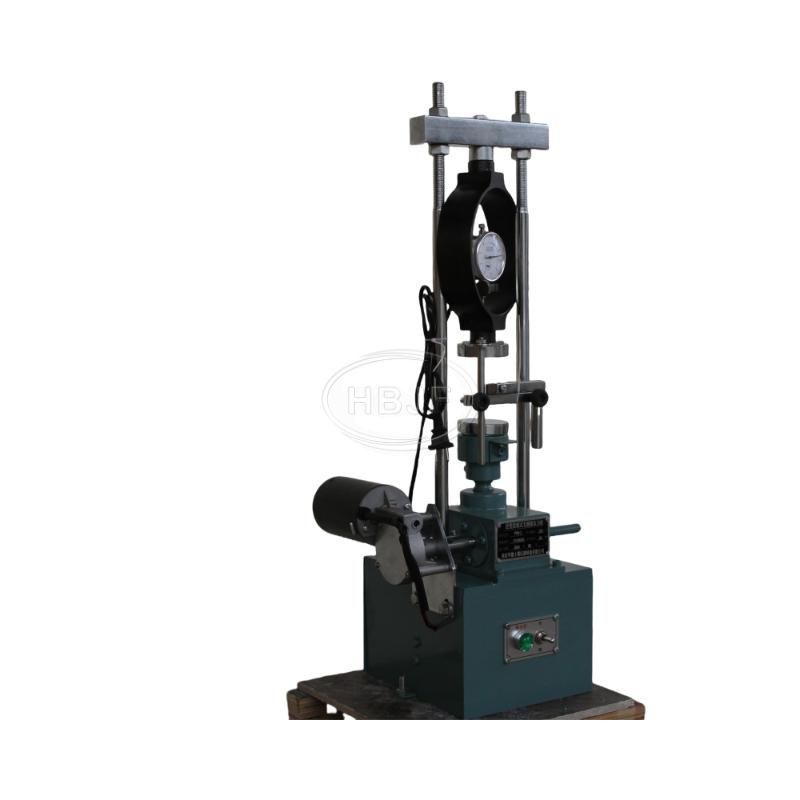

What Is a Triaxial Apparatus?

A triaxial apparatus is laboratory equipment used to determine the shear strength and deformation characteristics of soil by applying controlled axial and confining pressures to a cylindrical soil specimen.

Unlike simple compression tests, the triaxial test simulates real-world underground stress conditions, making it one of the most reliable methods for evaluating soil performance in embankment construction.

Engineers use triaxial testing to analyze:

· Shear strength

· Cohesion (c)

· Angle of internal friction (φ)

· Stress-strain behavior

· Pore water pressure

· Soil stiffness

· Failure mechanisms

These parameters are fundamental for designing stable earth structures.


Why Is Shear Strength Important for Embankments?

An embankment continuously experiences vertical loads from its own weight, traffic, and environmental conditions. At the same time, lateral forces develop within the soil mass.

If the soil's shear strength is insufficient, problems may occur, including:

Slope Failure

Weak soil may slide along failure surfaces, causing embankment collapse.

Excessive Settlement

Poor shear resistance allows soil particles to rearrange, leading to uneven settlement.

Cracking and Deformation

Insufficient strength can produce surface cracking that shortens pavement service life.

Reduced Safety

Accurate shear strength measurements help engineers calculate adequate safety factors for long-term stability.

How Does a Triaxial Apparatus Work?

The triaxial test recreates field stress conditions inside a controlled laboratory environment.

Step 1: Prepare the Soil Specimen

A cylindrical soil sample is carefully trimmed to standard dimensions.

The specimen is enclosed in a flexible rubber membrane to prevent direct contact with the surrounding fluid.

Step 2: Place the Sample Inside the Pressure Chamber

The specimen is positioned between loading platens inside the triaxial chamber.

The chamber is then filled with water or oil to create confining pressure around the sample.

Step 3: Apply Confining Pressure

The apparatus applies uniform pressure from all directions except the top and bottom.

This simulates the natural pressure exerted by surrounding soil in the field.

Different confining pressures can represent varying depths below ground.

Step 4: Apply Axial Load

A vertical load is gradually applied to the specimen until failure occurs.

During loading, the system continuously records:

· Axial force

· Axial displacement

· Stress

· Strain

· Pore water pressure (when applicable)

Step 5: Analyze Failure

After the specimen fails, engineers analyze the recorded data to calculate shear strength parameters used in embankment design.

Types of Triaxial Tests

Different project requirements call for different testing methods.

Unconsolidated Undrained (UU) Test

The UU test is the fastest method.

Characteristics include:

· No consolidation

· No drainage

· Suitable for saturated cohesive soils

· Commonly used for rapid construction assessments

Consolidated Undrained (CU) Test

The CU test allows soil consolidation before shearing while preventing drainage during loading.

Advantages include:

· Measures pore water pressure

· Simulates many field conditions

· Frequently used in embankment and foundation design

Consolidated Drained (CD) Test

The CD test allows complete drainage throughout testing.

It is suitable for:

· Long-term stability analysis

· Granular soils

· Permanent embankment structures

Although slower than other methods, it provides highly reliable long-term strength parameters.

How Triaxial Testing Determines Shear Strength

The triaxial apparatus evaluates the stress conditions at soil failure.

Using the recorded axial and confining stresses, engineers determine:

Cohesion (c)

Cohesion represents the bonding force between soil particles.

Clay soils generally exhibit higher cohesion than sands.

Internal Friction Angle (φ)

The friction angle indicates the resistance generated by particle interlocking during shearing.

Granular soils usually have higher friction angles.

Failure Envelope

By testing several specimens under different confining pressures, engineers establish the Mohr-Coulomb failure envelope.

This relationship predicts soil behavior under various loading conditions encountered in embankments.

Applications in Embankment Engineering

The triaxial apparatus supports numerous geotechnical applications.

Highway Embankments

Determine whether foundation soils can safely support pavement loads.

Railway Construction

Evaluate embankment stability under repeated train loading.

Earth Dams

Analyze long-term shear resistance and seepage effects.

Retaining Structures

Provide design parameters for lateral earth pressure calculations.

Slope Stability Analysis

Supply accurate strength values for slope safety calculations.

Advantages of Triaxial Testing

Compared with many traditional soil tests, triaxial testing offers significant benefits.

Realistic Stress Simulation

The apparatus closely reproduces actual underground stress conditions.

Comprehensive Soil Analysis

It measures both strength and deformation properties.

High Accuracy

Modern digital systems produce precise and repeatable results.

Versatility

Suitable for cohesive soils, granular soils, stabilized materials, and engineered fills.

International Acceptance

Triaxial testing complies with widely recognized ASTM, AASHTO, ISO, and BS standards.

Complementary Soil Testing Methods

Although the triaxial apparatus provides comprehensive strength data, engineers often combine it with other Soil Test Equipment for a complete site evaluation.

Proctor Compaction Test

Determines optimum moisture content and maximum dry density.

California Bearing Ratio (CBR) Test

Evaluates subgrade support capacity for pavement design.

Dynamic Cone Penetrometer

Provides rapid field estimates of soil strength.

Plate Bearing Test

Measures in-situ bearing capacity and settlement characteristics.

Using multiple testing methods improves design reliability and construction quality.

Why Choose HBJF Soil Test Equipment?

Reliable laboratory results require precision-engineered equipment. HBJF offers a complete range of Soil Test Equipment for geotechnical laboratories, universities, construction companies, and research institutions.

Key advantages include:

Precision Performance

HBJF equipment delivers accurate, repeatable measurements that support confident engineering decisions.

Compliance with International Standards

Products are manufactured in accordance with ASTM, AASHTO, ISO, and other recognized testing specifications.

Durable Construction

High-quality materials ensure dependable operation in demanding laboratory environments.

User-Friendly Operation

Modern control systems simplify testing procedures and improve laboratory efficiency.

Comprehensive Testing Solutions

Beyond triaxial apparatus systems, HBJF supplies equipment for soil mechanics, asphalt, concrete, cement, aggregate, and foundation testing, enabling customers to establish complete materials testing laboratories.

Conclusion

A triaxial apparatus is one of the most valuable tools for determining the shear strength of soils used in embankments. By simulating real-world stress conditions and measuring key parameters such as cohesion and internal friction angle, it provides engineers with the data needed to design safe, stable, and durable earth structures.

As a critical component of professional Soil Test Equipment, triaxial testing improves the accuracy of geotechnical investigations and supports better engineering decisions. With advanced testing solutions from HBJF, laboratories and construction professionals can perform reliable shear strength testing, ensuring embankments meet the highest standards of safety, performance, and long-term stability.
