Which Compaction Test Suits Highway Subgrade: Proctor or CBR?

 Highway construction depends on a stable and durable subgrade that can support heavy traffic loads for decades. Before paving begins, engineers must understand the characteristics of the soil and verify that it meets design requirements. This is where Soil Test Equipment plays a critical role.

Among the most commonly used methods for evaluating highway subgrade are the Proctor Compaction Test and the California Bearing Ratio (CBR) Test. While both are essential, they serve different purposes and complement each other rather than compete. Understanding when to use each test helps contractors, laboratories, and engineers make informed decisions that improve pavement performance.

In this guide, we'll compare Proctor and CBR testing, explain their applications, and show how high-quality Soil Test Equipment from HBJF supports accurate and reliable results.

Understanding the Purpose of Soil Compaction Testing

Before discussing individual tests, it's important to understand why compaction matters.

Poorly compacted soil can lead to:

· Uneven pavement settlement

· Cracking and rutting

· Reduced load-bearing capacity

· Increased maintenance costs

· Premature pavement failure

Proper soil testing ensures that field compaction achieves the required density and strength before road construction progresses.

What Is the Proctor Compaction Test?

The Proctor Compaction Test determines the relationship between soil moisture content and dry density.

Its primary objective is to identify:

Maximum Dry Density (MDD)

The highest density a soil can achieve under standardized compaction energy.

Optimum Moisture Content (OMC)

The moisture level at which maximum dry density is obtained.

These two values become the benchmark for field compaction during highway construction.

How the Test Works

Using specialized Soil Test Equipment, technicians:

1. Prepare soil samples.

2. Adjust moisture content.

3. Compact the soil in layers inside a mold.

4. Measure the resulting dry density.

5. Repeat the process with different moisture levels.

6. Plot a compaction curve.

The peak of the curve indicates the Maximum Dry Density and Optimum Moisture Content.

Advantages of the Proctor Test

Establishes Compaction Standards

Construction crews use Proctor test results to determine field compaction targets, often requiring 95% to 98% of Maximum Dry Density.

Supports Quality Control

It provides measurable acceptance criteria for inspectors throughout construction.

Cost-Effective

The test is relatively simple, quick, and widely recognized in international standards.

Suitable for Various Soil Types

It works well with many granular and cohesive soils commonly used in highway subgrades.

What Is the California Bearing Ratio (CBR) Test?

Unlike the Proctor Test, the CBR Test measures soil strength rather than compaction characteristics.

It evaluates how well compacted soil can resist penetration under load, helping engineers determine pavement thickness requirements.

How the Test Works

After preparing and compacting the soil specimen—usually according to Proctor test results—a piston penetrates the sample at a controlled rate.

The measured resistance is compared to a standard crushed rock value to calculate the CBR percentage.

Higher CBR values indicate stronger subgrade soils.

Advantages of the CBR Test

Evaluates Load-Bearing Capacity

CBR directly reflects how much traffic loading the subgrade can withstand.

Supports Pavement Design

Road engineers use CBR values when calculating pavement layer thickness.

Identifies Weak Soils

Low CBR results may indicate the need for stabilization or replacement before construction.

Applicable to Flexible Pavement Design

Many highway specifications worldwide still rely on CBR data for pavement engineering.

Proctor Test vs CBR Test: What's the Difference?

Purpose

Proctor Test

· Determines optimum moisture content

· Determines maximum dry density

· Establishes compaction specifications

CBR Test

· Measures bearing capacity

· Evaluates soil strength

· Supports pavement thickness design

Main Output

Proctor testing provides:

· Maximum Dry Density (MDD)

· Optimum Moisture Content (OMC)

CBR testing provides:

· California Bearing Ratio (%)

Application Stage

The Proctor Test is generally performed before field compaction begins to establish density targets.

The CBR Test is typically conducted during the pavement design phase to evaluate subgrade performance under traffic loads.

Which Test Is More Important?

The answer is both.

Neither test replaces the other.

The Proctor Test ensures soil is compacted correctly.

The CBR Test ensures the compacted soil is strong enough to support the designed pavement structure.

Highway projects usually require both tests for complete quality assurance.

How Proctor and CBR Tests Work Together

A typical highway project follows this sequence:

Step 1: Soil Classification

Engineers first identify soil properties.

Step 2: Proctor Compaction Test

Determine:

· Maximum Dry Density

· Optimum Moisture Content

Step 3: Sample Preparation

CBR specimens are compacted according to Proctor test results.

Step 4: CBR Testing

Evaluate bearing capacity.

Step 5: Pavement Design

Use CBR values to determine pavement thickness.

Step 6: Field Density Testing

Verify construction compaction meets Proctor requirements.

This integrated approach minimizes construction risks and improves long-term pavement performance.

Choosing Reliable Soil Test Equipment

Accurate testing depends not only on proper procedures but also on precision instruments.

Professional laboratories typically require:

For Proctor Testing

· Compaction molds

· Manual or automatic compactors

· Soil mixers

· Moisture testing equipment

· Balances

· Drying ovens

For CBR Testing

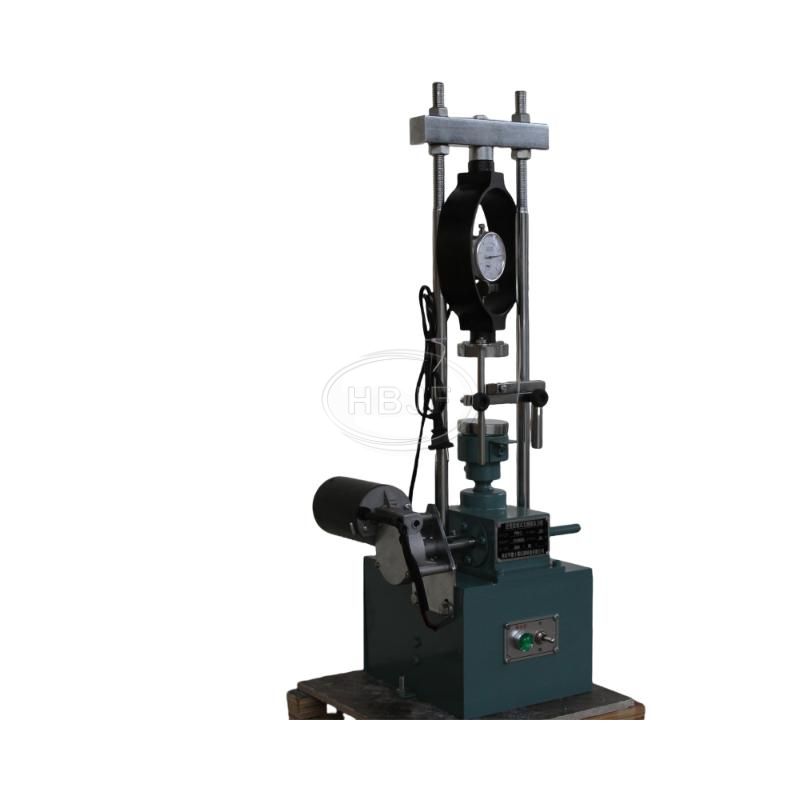

· CBR testing machines

· Penetration pistons

· Load frames

· Soaking tanks

· Dial gauges or digital displacement indicators

High-quality Soil Test Equipment ensures repeatable, standards-compliant results while reducing operator errors.

Why Choose HBJF Soil Test Equipment?

HBJF provides a comprehensive range of Soil Test Equipment designed for highway engineering laboratories, universities, research institutions, and construction quality control departments.

Key advantages include:

High Accuracy

Precision-engineered instruments deliver reliable and repeatable testing results.

Compliance with International Standards

Equipment is manufactured to meet widely accepted ASTM, AASHTO, ISO, and other industry testing requirements.

Durable Construction

Heavy-duty materials ensure long service life even under intensive laboratory use.

User-Friendly Operation

Modern designs improve testing efficiency and reduce training requirements.

Complete Laboratory Solutions

HBJF supplies comprehensive testing systems covering soil mechanics, asphalt, concrete, cement, and aggregate testing, enabling laboratories to source all essential equipment from one trusted provider.

Conclusion

When evaluating highway subgrades, the question is not whether the Proctor Test or the CBR Test is better—it is how they work together. The Proctor Test establishes the ideal compaction conditions, while the CBR Test measures the soil's ability to support traffic loads. Together, they provide the foundation for safe, durable, and cost-effective road construction.

Investing in reliable Soil Test Equipment is essential for obtaining accurate data and maintaining quality throughout every stage of a project. With advanced testing solutions from HBJF, engineers and laboratories can perform both Proctor and CBR tests with confidence, ensuring highway subgrades meet the highest standards of performance and long-term durability.
